Gateway For M-Bus

M-Bus or Meter-Bus is a European standard (EN 13757-2 physical and link layer, EN 13757-3 application layer) for the remote reading of water, gas or electricity meters.

The detail of M-Bus could be found here:

The implementation of M-Bus gateway in BACRouter refers to libmbus,  Currently we only support serial. TCP is not supoorted yet.

There is very few M-Bus devices in China, so we can not test our implementation well. If you find any bug, please share with us.

To communicate with M-Bus devices, you need a M-Bus/RS485 signal converter.

Scan Records In A Meter:

In libmbus, there are some very useful tools, we have cross-compiled some of them to Win32 platform:

mbus-serial-scan.exe: Scan M-Bus devices on the bus by primary address (0~250)
Usage:  mbus-serial-scan.exe -b 2400 COM3
2400 is baudrate. COM3 is the serial port.

mbus-serial-scan-secondary.exe: Scan M-Bus devices on the bus by secondary address
Usage:  mbus-serial-scan-secondary.exe -b 2400 COM3

mbus-serial-switch-baudrate.exe: Switch the baudrate of a M-Bus device
Usage:  mbus-serial-switch-baudrate.exe -b 2400 COM3 Address Newbaudrate
Address could be a primary address or a secondary address, which could be obtained from previous scan.

mbus-serial-set-address.exe: Set the primary address of a M-Bus device
Usage:  mbus-serial-set-address.exe -b 2400 COM3 Address NewPrimaryAddress

mbus-serial-request-data-multi-reply.exe: Pull all records from a M-Bus device
Usage:  mbus-serial-request-data-multi-reply.exe -b 2400 COM3 Address

Records pulled will be listed as:

<DataRecord id="1">
    <Function>Instantaneous value</Function>
    <Unit>Energy (10 Wh)</Unit>

We can just focus on the record id and unit.

Setup Free Client In The BACRouter:

Upgrade the firmware in the BACRouter to version 5.04 or larger.

Connect the RS485 port to the M-Bus, If there is a MS/TP port running on the RS485 port,  you should disable the MS/TP port first.

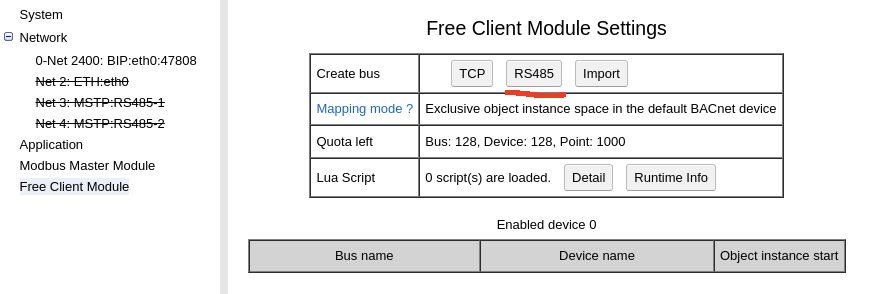

Open WebUI by web browser, select “Free Client Module”, on the “Create bus” row, click “RS485”

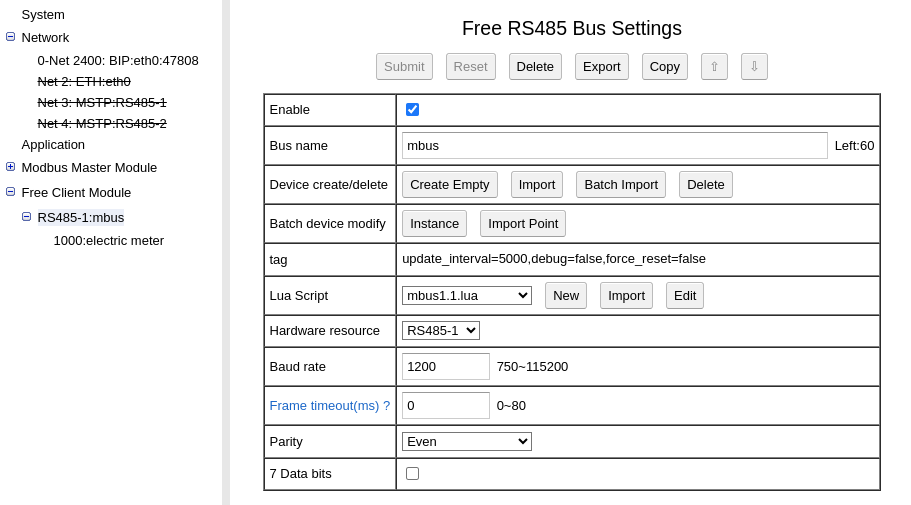

After bus is created, edit the bus:

From firmware version 5.X, more than one bus can be defined on the same RS485 port. Most RS485 protocol is stateless, so it is safe to do so. But for M-Bus, the sequence of communication is critical, so Don’t define more than one M-Bus on a RS485 port.

The Lua script could be downloaded from here: mbus1.2.lua

On the “tag” field, update_interval=5000, means every 5000 milliseconds, BACRouter will refresh all values. If force_reset is set, before BACRouter try to communicate with a M-Bus device by primary address, BACRouter will send a “SND_NKE” to the address, which will initialize the device. There was report that some devices only worked under force_reset=true.

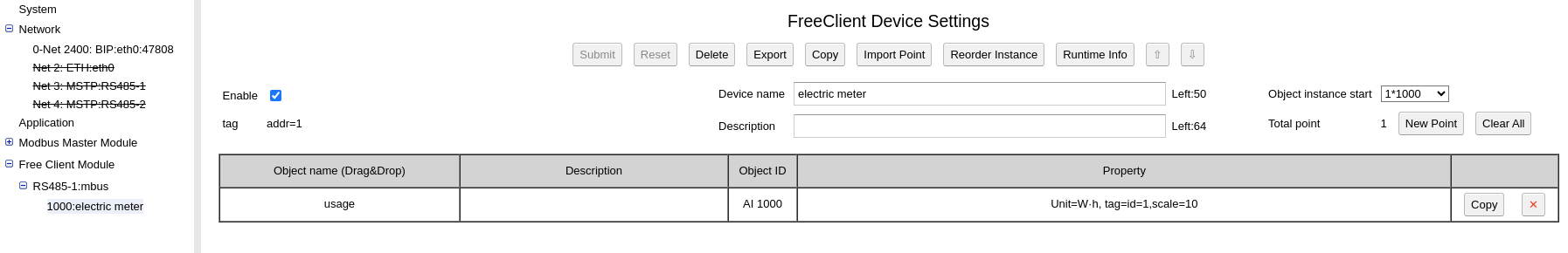

On the “Device create/delete” row, click “Create Empty” to create a new M-Bus device. select created device to edit:

On the “tag” field, input:  addr=1

That means the primary address of the M-Bus device is 1,  if you want to use secondary address,  it should look like:  addr=”f57072162440f102″

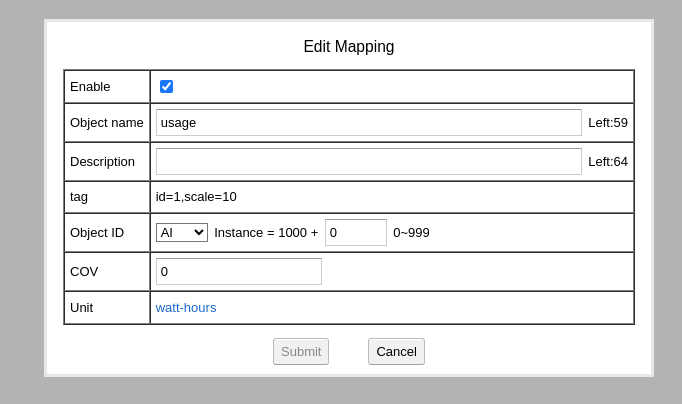

The create a new point to map record id 1, click to edit:

On the “tag” field, id=1 means the record id is 1,  scale=10 means the value read from device will be multiplied with 10.  Note: the unit of record id 1 is 10 Wh,  the BACnet unit we choosed here is Wh.

Example Of M-Bus Configuration

The config of the above M-Bus bus can be downloaded here: RS485-1_mbus.json
